Description

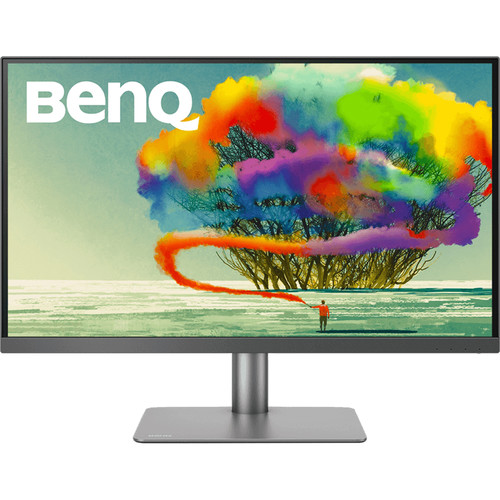

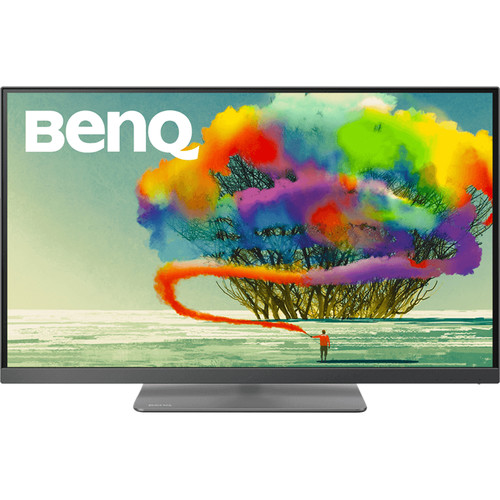

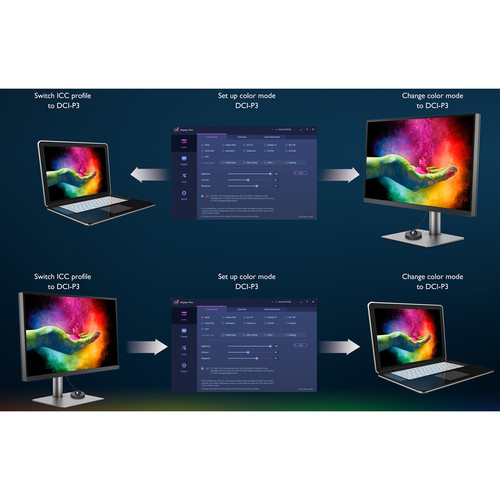

The BenQ PD2720U DesignVue Designer 27″ 4K IPS Monitor is engineered for designers who demand precise color accuracy, offering 100% coverage of sRGB, Adobe RGB, and Rec. 709 color gamuts, along with 96% DCI-P3 and HDR10 support. Leveraging BenQ’s AQCOLOR technology and a 3840 x 2160 Ultra HD 4K resolution at 60 Hz, it ensures enhanced precision and productivity through three specialized modes: CAD/CAM, Animation, and Darkroom.

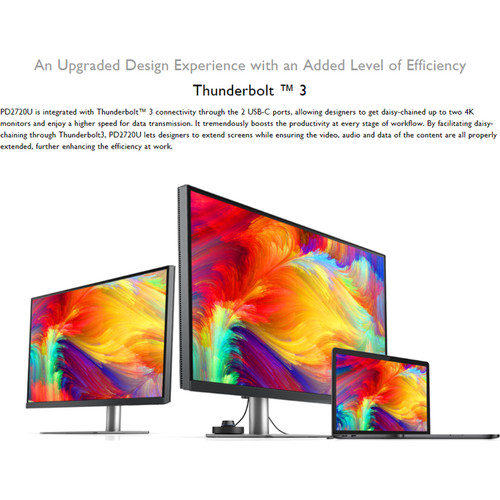

This monitor boasts In-Plane Switching (IPS) technology, an anti-glare coating, 10-bit color support for 1.07 billion colors, a 16:9 aspect ratio, 1000:1 static contrast ratio, and 350 cd/m2 typical and peak HDR brightness. With 178° viewing angles, you can view content from almost any position. Connectivity options include two HDMI 2.0 inputs, one DisplayPort 1.4 input, two Thunderbolt 3 ports with DP alt mode for daisy-chaining, two USB 3.1 Gen 2 Type-A ports, and one USB 3.1 Gen 2 Type-B port. Audio output is available through dual 2W speakers or a 3.5mm headphone jack.

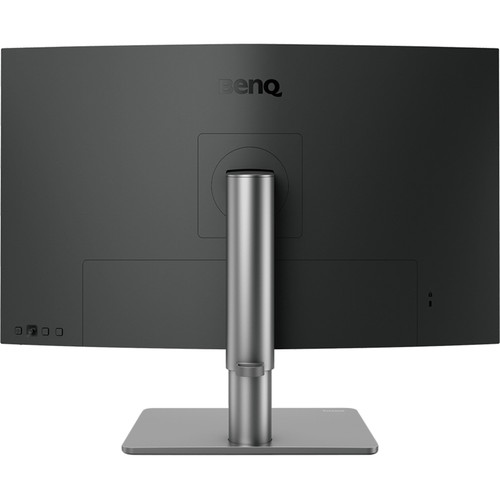

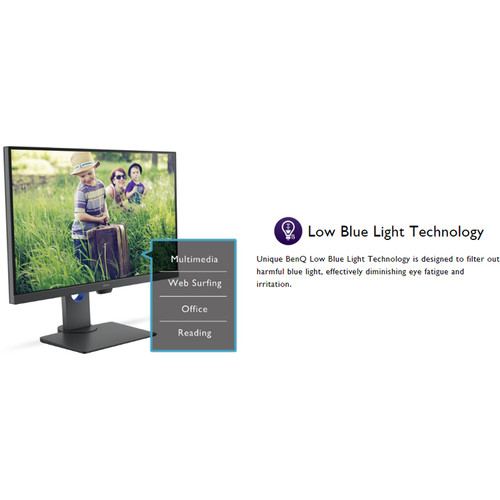

The BenQ PD2720U also features HDCP 2.2, Flicker-Free technology, Low Blue Light technology, Picture in Picture (PiP), and Picture by Picture (PbP). For improved viewing, it offers -5 to 20° tilt, ±30° swivel, 90° pivot, 5.91″ height adjustment, and a 100 x 100mm VESA mount. Certified for Mac, Windows, SolidWorks, and Calman, it ensures compatibility across various platforms.
Note that USB data transmission speeds are 10 Gb/s with Thunderbolt 3 input, and 5 Gb/s with DisplayPort or HDMI.
Additional information
| Weight | 23.15 lbs |
|---|---|
| Dimensions | 27 × 24 × 6.9 in |
| Size | 27" |
| Storage Humidity | 10 to 60% |
| Power Consumption | 200 W (Maximum)<br />43 W (Typical)<br />0.5 W (Standby) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| USB Power Delivery | 65 W (via USB Type-C)<br />15 W (via USB Type-C) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 90% |
| Operating Altitude | 10, 000' / 3048 m |
| Multi-Input Support (PIP/PBP) | Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Storage Altitude | 40, 000' / 12, 192 m |
| Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer |
| Height Adjustment | 5.91" / 150 mm |
| Rotation Adjustment | 90° |
| Swivel Adjustment | 60° (-30 to 30°) |
| Tilt Adjustment | -5 to 20° |
| Mounting-Hole Pattern | 100 x 100 mm |
| Supported Languages | Arabic<br>Czech<br>Dutch<br>English<br>French<br>German<br>Hungarian<br>Italian<br>Japanese<br>Korean<br>Polish<br>Portuguese<br>Romanian<br>Russian<br>Simplified Chinese<br>Spanish<br>Swedish<br>Traditional Chinese |
| Memory Card Slots | None |
| Screen Area | 23.49 x 13.21" / 596.74 x 335.66 mm |
| Contrast Ratio | 1000:1 |
| Panel Type | IPS-Type LCD |
| Touchscreen | No |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Pixels Per Inch (ppi) | 163 ppi |
| Finish | Glossy with Anti-Reflective Coating |
| Maximum Brightness | 350 cd/m2 (Sustained in SDR Mode)<br />350 cd/m2 (Peak in HDR Mode) |
| Refresh Rate | 60 Hz |
| Built-In Speakers | Yes, 2 x 2 W |
| Variable Refresh Technology | None |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | HDR10 |
| Color Gamut | 100% sRGB<br />100% Adobe RGB<br />100% Rec. 709<br />96% DCI-P3 |
| Response Time | 5 ms (GtG) |
| Viewing Angle (H x V) | 178 x 178° |

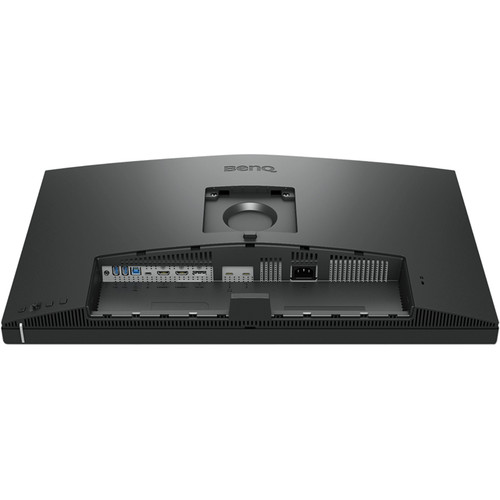

| Connectivity | 2 x USB Type-C (Thunderbolt 3) Input/Output<br />2 x HDMI 2.0 Input<br />1 x DisplayPort 1.4 Input<br />2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) Output<br />1 x USB Type-B (USB 3.1 / USB 3.2 Gen 2) Input<br />1 x 3.5 mm Output |
| HDCP Support | Yes, Version 2.2 |
| Dimensions (W x H x D) | 24.2 x 23.4 x 10.6" / 614.4 x 593.7 x 268.2 mm (with Stand)<br />24.2 x 14.4 x 3.4" / 614.4 x 366.0 x 87.4 mm (without Stand) |
