Description

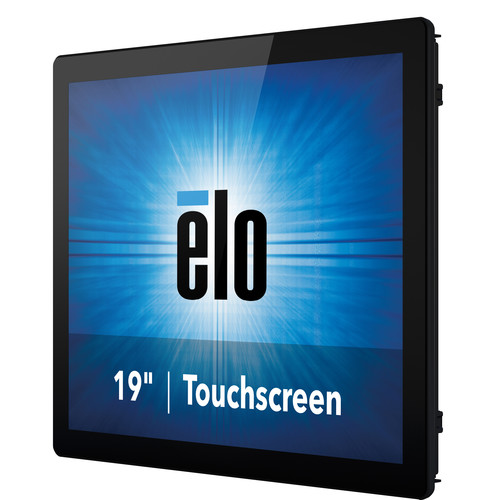

Bring interactive capabilities to your kiosk, tabletop, or retail fixture with the Elo Touch 19″ 1990L Open-Frame LCD Touchscreen Monitor. The 19″ TFT panel delivers 1280 x 1024 resolution & 16.7 million colors. Perfect for commercial use, it boasts a 1000:1 contrast ratio & 60Hz refresh rate for crisp visuals.
Enjoy versatile connectivity with DisplayPort, HDMI, and VGA inputs, plus two USB 2.0 connectors for easy setup. Compatible with 75 & 100mm VESA mounts or use the included side brackets for custom installation. Requires a 12V DC power supply (sold separately).
Additional information
| Weight | 14.52 lbs |
|---|---|
| Dimensions | 20.5 × 17.6 × 6.7 in |
| Size | 19" |
| Built-In Speakers | None |
| Lock Slot | No |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Tilt Adjustment | None |
| Certifications | BSMI, CB, CCC, EAC, RCM, RoHS, UL, VCCI, WEEE, as per Manufacturer |
| Storage Humidity | 10 to 95% |
| Operating Humidity | 20 to 80% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| DC Input Power | 12 VDC |
| USB Power Delivery | None |
| Power Adapter Type | External |
| Power Consumption | 11.78 W (Typical)<br />1.5 W (Standby) |
| Connectivity | 1 x HDMI<br />1 x DisplayPort<br />1 x VGA<br />2 x USB (USB 2.0)<br />1 x RJ45 |
| Screen Area | 14.82 x 11.85" / 376.32 x 301.06 mm |
| Viewing Angle (H x V) | 170 x 160° |
| Response Time | 5 ms |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Variable Refresh Technology | None |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 1000:1 |
| Maximum Brightness | 225 cd/m2 |
| Pixels Per Inch (ppi) | 86 ppi |
| Aspect Ratio | 5:4 |
| Resolution | 1280 x 1024 |
| Touchscreen | Yes |
| Panel Type | TFT LCD |
| Dimensions (W x H x D) | 16.3 x 13.5 x 2.0" / 414.7 x 342.7 x 50.0 mm |
