Description
Fractal Design Ion+ 860P: Unleash Power, Silence, and Efficiency
Elevate your PC build with the Fractal Design Ion+ 860P 860W 80 PLUS Platinum Modular Power Supply, engineered for peak performance, whisper-quiet operation, and exceptional reliability. This premium ATX power supply is designed to power high-end systems with ease, ensuring your components receive clean, stable power.
Key Features:
- High-Efficiency 80 PLUS Platinum Certification: Maximize energy efficiency and reduce waste heat.
- 860W Single +12V Rail: Delivers reliable, stable power to demanding components.

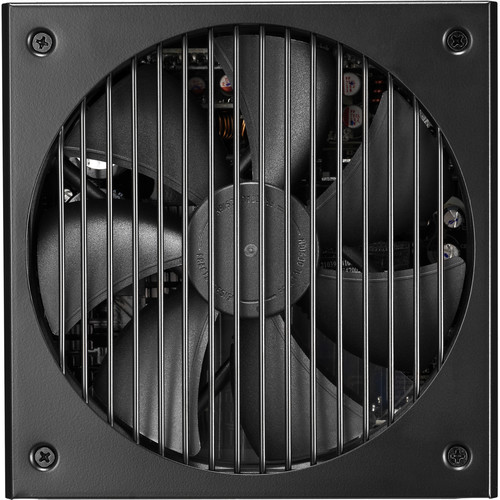

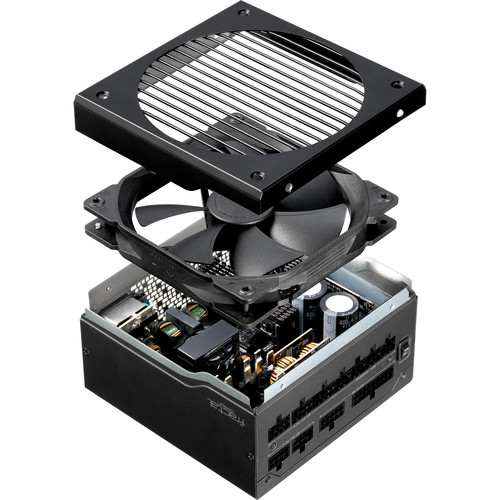

- 140mm Fan with Zero RPM Mode: Ensures silent operation under low loads, perfect for media centers or quiet workstations.

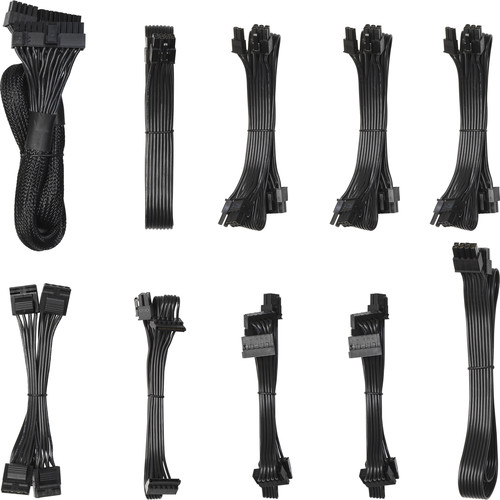

- Fully-Modular UltraFlex Cabling: Includes flat and sleeved cables for improved airflow and aesthetics.

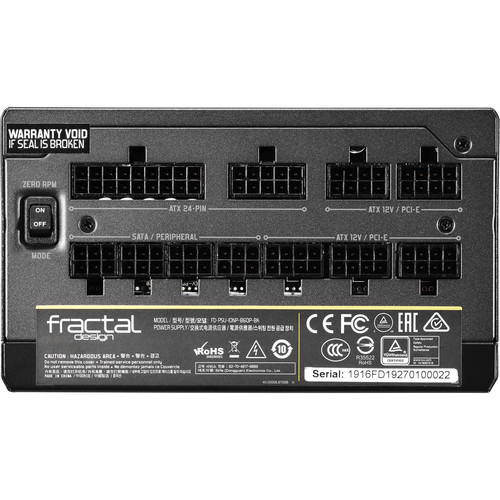

- Comprehensive Connectivity: Offers one motherboard, two CPU, six PCIe, ten SATA, and four 4-pin peripheral connectors.
- Long-Lasting 100,000-Hour Lifespan: Built to last, minimizing the need for replacement and reducing electronic waste.
The Fractal Design Ion+ 860P is not just a power supply; it’s a cornerstone for a high-performance, reliable, and quiet PC build. With its adherence to ATX12V 2.4 and EPS12V 2.92 specifications, this PSU is compatible with a wide range of systems. The included cable storage pouch and hardware kit with screws and zip ties ensure your build remains tidy and organized.
Experience the pinnacle of power supply technology with the Ion+ 860P. Whether you’re a gamer, content creator, or PC enthusiast, this power supply delivers the power, efficiency, and silence you need to build your dream PC.
Additional information
| Weight | 7.01 lbs |
|---|---|
| Dimensions | 12.8 × 8.3 × 4.5 in |
| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />1 x 8-Pin EPS CPU<br />6 x 6+2-Pin PCIe<br />10 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 22 A |
| Certifications | BSMI, CB, CCC, CE, EAC, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4, EPS 12 V v2.92 |
| Form Factor | ATX |
| Storage Temperature | 122°F / 50°C |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Size | 140 mm |
| Efficiency Rating | 80 PLUS Platinum |

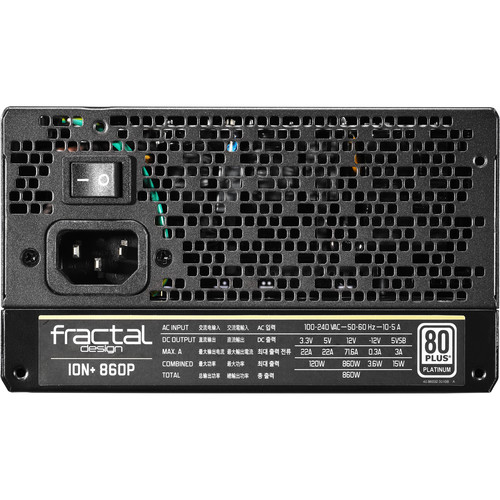

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 22 A |
| Cable Design | Flat, Modular, Sleeved |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 860 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 860 W |
| EPS Connector Distances | 27.6" / 700 mm<br />23.6" / 600 mm |
| ATX Connector Distance | 23.6" / 600 mm |
| Peripheral Connector Distances | 15.7" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />25.6" / 650 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
