Description
Efficient Power for High-Performance PCs
Unlock the full potential of your high-performance PC with the Gigabyte GP-P750GM 750W 80 PLUS Gold Modular Power Supply. Engineered for efficiency and reliability, this power supply unit (PSU) delivers 750W of power via a single +12V rail, adhering to the Intel ATX 12V v2.31 form factor for broad compatibility.
Key Features:
- 750W Power Output: Provides ample power for high-performance CPUs and multiple graphics cards.
- 80 PLUS Gold Certification: Ensures high efficiency, reducing energy consumption and lowering electricity bills.

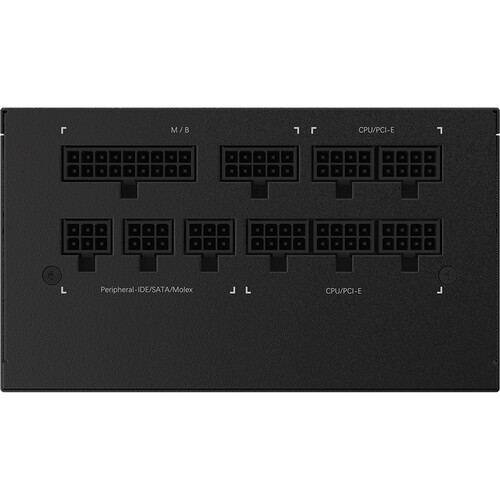

- Fully Modular Design: Includes flat, modular cables for one motherboard, two CPU, four PCIe, eight SATA, and three 4-pin connectors, plus a 4-pin floppy connector, minimizing clutter and improving airflow.

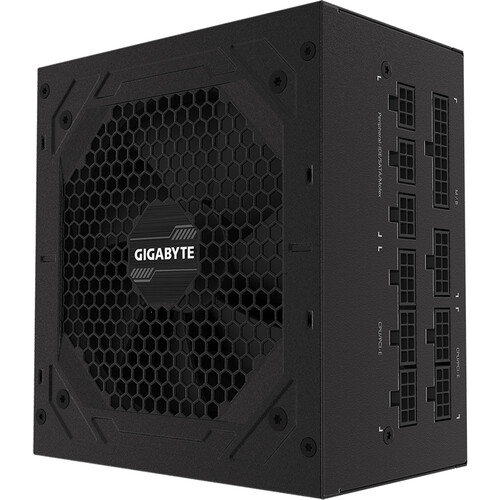

- Long-Lasting 120mm Fan: Features a durable 120mm fan with a lifespan of more than 100,000 hours, ensuring quiet and reliable operation.
- Single +12V Rail: Simplifies power delivery for stable performance under heavy loads.
The Gigabyte GP-P750GM is designed to meet the needs of PC enthusiasts and gamers who demand stable, efficient power for their systems. With its modular design, you can enjoy a cleaner build and better airflow within your PC case, while the 80 PLUS Gold certification ensures you’re getting a product that’s not only powerful but also energy-efficient.
By choosing the Gigabyte GP-P750GM 750W 80 PLUS Gold Modular Power Supply, you’re investing in a reliable power solution that supports your PC’s performance and longevity.
Additional information
| Weight | 5.47 lbs |
|---|---|
| Dimensions | 10.1 × 8.2 × 4.7 in |
| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />2 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />8 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Max Load for +5 Vsb | 3 A |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.31 |
| Form Factor | ATX |
| Fan Life Expectancy | 35, 000 Hours |
| Bearing Type | Hydraulic |
| Fan Size | 120 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 16 ms |
| Efficiency | 90% at 50% Load |
| Active Power Factor Correction | Yes |
| Efficiency Rating | 80 PLUS Gold |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 12 to 6 A |
| Max Power for -12 V | 3.6 W |
| Max Power for +5 Vsb | 15 W |
| Cable Design | Flat, Modular |
| Max Load for +5 V | 20 A |
| Max Load for +3.3 V | 20 A |
| Combined Power for +3.3/+5 V | 105 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 732 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 750 W |
| EPS Connector Distances | 23.6" / 600 mm<br />23.6" / 600 mm |
| ATX Connector Distance | 24" / 610 mm |
| Floppy Connector Distances | 4.7" / 120 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 23.6" / 600 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />23.6" / 600 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
| PCIe Connector Distances | 23.6" / 600 mm<br />5.9" / 150 mm<br />23.6" / 600 mm<br />5.9" / 150 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
