Description

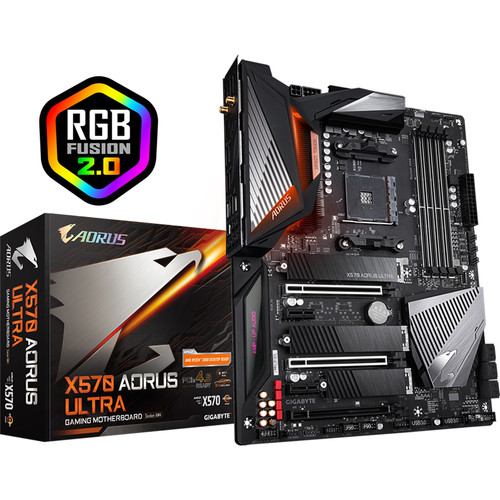

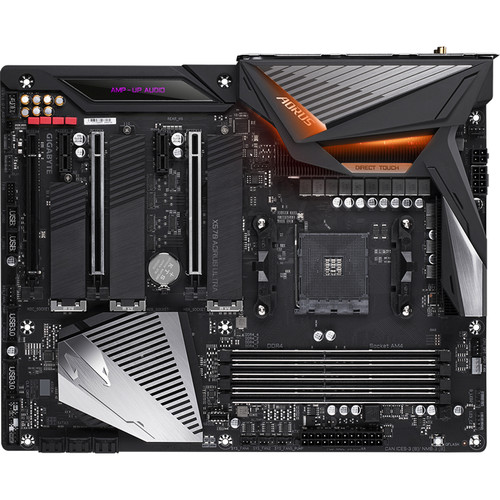

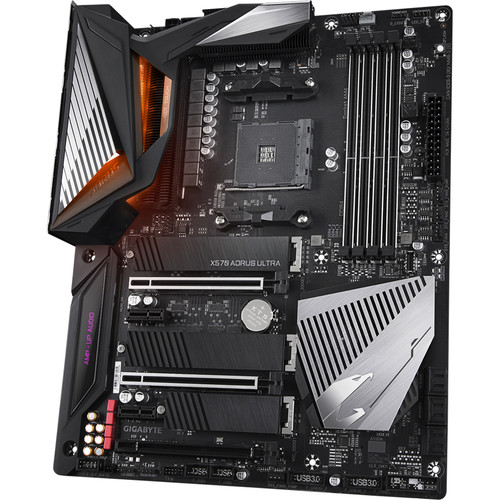

Elevate Your Gaming Experience with GIGABYTE X570 AORUS ULTRA
Build your dream gaming rig with the GIGABYTE X570 AORUS ULTRA AM4 ATX Motherboard, designed to unlock the full potential of AMD Ryzen processors. This powerful motherboard is engineered for high-performance gaming, offering a robust feature set that caters to the needs of serious builders and gamers alike.
Key Features:
- AMD X570 Chipset: Supports AM4 socket for AMD Ryzen processors
- Dual-Channel DDR4 Memory: Four DIMM slots support up to 4400 MHz for enhanced multitasking
- High-Speed Storage: Six SATA III ports and three M.2 PCIe NVMe slots for fast storage
- PCIe 4.0/3.0 Expansion: Three PCIe x16 and two PCIe x1 slots for versatile graphics and utility card support
- RGB Fusion 2.0: Integrated RGB headers for customizable lighting to match your style
With the GIGABYTE X570 AORUS ULTRA, you can create a gaming system that is not only powerful but also visually stunning. The motherboard’s support for PCIe 4.0 ensures that you can take full advantage of the latest graphics cards and storage solutions, providing a seamless gaming experience. Whether you’re upgrading your current build or starting from scratch, this motherboard is the perfect foundation for your high-performance gaming PC.
The GIGABYTE X570 AORUS ULTRA is designed to cater to the needs of modern gamers, offering a perfect blend of performance, customization, and future-proofing. With its comprehensive feature set and support for the latest technologies, it’s an ideal choice for anyone looking to build a high-end gaming system.
Additional information
| Weight | 4.14 lbs |
|---|---|
| Dimensions | 13.7 × 11.6 × 3.3 in |
| Chipset | AMD X570 |
| Expansion Slots | 2 x PCIe 4.0 x16<br />1 x PCIe 4.0 x16 (x8 mode)<br />2 x PCIe 4.0 x1 |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | 5.0 |
| Audio Codec | Realtek ALC1220-VB (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| ROM | 2 x 128 Mb |
| Diagnostics | Clear CMOS |
| LED Header | 5 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />5 x 4-Pin System<br />2 x Thermal Sensor |
| Multi-GPU Support | 2-Way, Quad-GPU NVIDIA SLI<br />2-Way, Quad-GPU AMD CrossFireX |
| RAID Support | RAID 0, 1, 10 (SATA) |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)<br />1 x M Key 2242, 2260, 2280 (PCIe 4.0 x2, PCIe 3.0 x2) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400 MHz |
| Memory Slots | 4 x 288-Pin |
| Wi-Fi Antenna | 2 x Connector |
| Ethernet / Controller | 1 |
| Display | 1 x HDMI 2.0 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />1 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
