Description

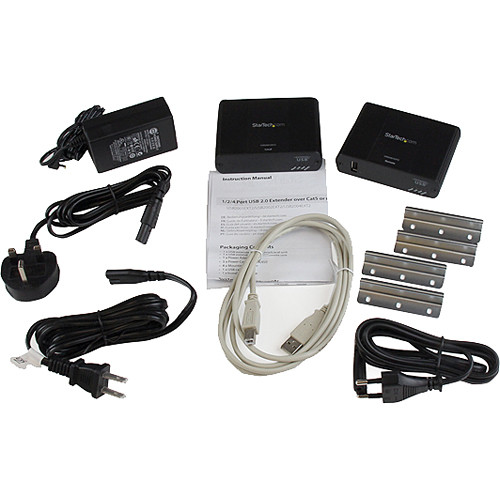

The StarTech 1-Port USB 2.0 Extender over Cat5/6 lets you extend a USB 2.0 connection over distances up to 330’ (100 m) using standard Cat5 or Cat6 Ethernet cabling. This USB extender is backward compatible with USB 1.x devices and enables remote placement of USB devices. It features a data transfer rate of up to 480 Mbps, no software installation required, and a durable metal enclosure. The extender also provides up to 500 mA of power (with an external power adapter; sold separately) for enhanced compatibility with bus-powered USB devices.
Additional information
| Weight | 2.7 lbs |
|---|---|
| Dimensions | 10.7 × 7.4 × 4.3 in |
| Ports | 1 |
| Cabling Type | Cat5e UTP or better |
| Connectors | Local Unit:<br /> |
| Maximum Data Transfer Rate | 480 Mbps |
| Maximum Distance | 330' (100 m) |
| OS Compatibility | Windows 2000 / XP (32/64) / Server 2003 (32/64) / Vista (32/64) / 7 (32/64) / Server 2008 R2 / Windows CE 6.0<br /> |
| LED Indicators | 1 x Activity<br /> |
| Input Voltage | 110 to 240 VAC |
| Output Voltage | 5 VDC |
| Output Current | 3 A |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Humidity | 20 to 90% RH |
| Enclosure Type | Aluminum |
| Requirements | System and Cable: USB enabled computer system with available USB port |
| Dimensions (L x W x H) | 3.9 x 3.0 x 1.0" (9.9 x 7.6 x 2.5 cm) |
