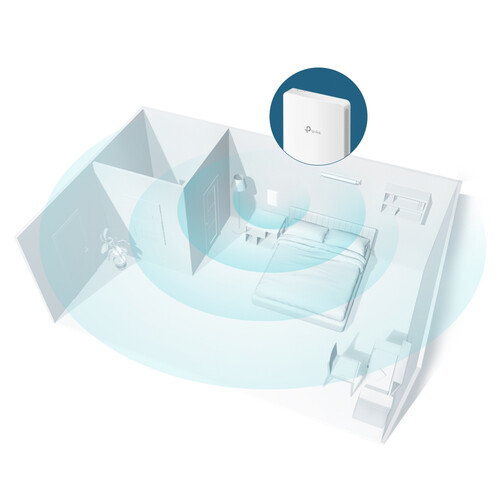

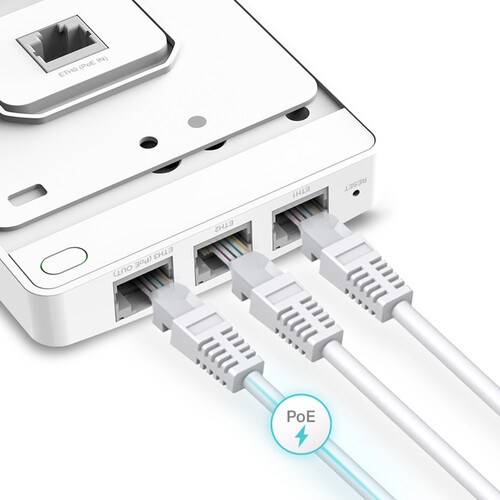

Elegantly expand your business’s Wi-Fi coverage with the TP-Link EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point. Designed for seamless integration, this ultra-thin wireless dual-band wall-plate mounting access point is compatible with standard 86mm junction boxes and powered via PoE. It boasts high-powered internal antennas for a maximum data transfer rate of up to 867 Mb/s at 5 GHz and 300 Mb/s at 2.4 GHz, ensuring extensive and stable wireless coverage in offices, hotels, and more. Equipped with three 1000 Mb/s access Ethernet ports and one uplink 802.3af/at PoE port, it not only receives power through the uplink port but also features a pass-through port to power devices like IP phones, cameras, and intercoms. Benefit from enterprise-class security for your wireless network and the convenience of managing it almost anywhere using the Omada cloud platform.
TP-Link AC1200 WiFi Wall Plate Access Point EAP235-Wall Omada PoE-Compliant Gigabit Wireless Dual-Band
$41.99
Elegant wall plate WiFi access point with PoE support, dual-band, and enterprise-class security
In stock
Description
Additional information
| Weight | 0.69 lbs |
|---|---|
| Dimensions | 7.2 × 4.6 × 1.3 in |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
| Operation Modes | Access Point |
| Mount Options | Wall |
| IP Rating | None |
| Storage Humidity | 5 to 90% |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Consumption | ≤24.4 W |
| Storage Capacity | None |
| Throughput | 1167 Mb/s Total <br>5 GHz: 867 Mb/s <br>2.4 GHz: 300 Mb/s |
| Max SSIDs Supported | 16 |
| Lock Slot | Yes |
| Number of Antennas | 2 |
| Wireless Security | WEP 128, WEP 152, WEP 64, WPA, WPA-PSK, WPA2, WPA2-PSK |
| USB Sharing Support | No |
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE<br />2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)<br />1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE |
| Bluetooth | None |
| Antenna Placement | Internal |
| Supported Protocols | SNMPv1<br>SNMPv2c |
| Transmit Power | 21 dBm |
| Antenna Gain | 8 dBi |
| WLAN Mode | Wi-Fi 5 (802.11ac) |
| MU-MIMO Support | Yes |
| Warranty Length | Limited Lifetime Warranty |
