Description

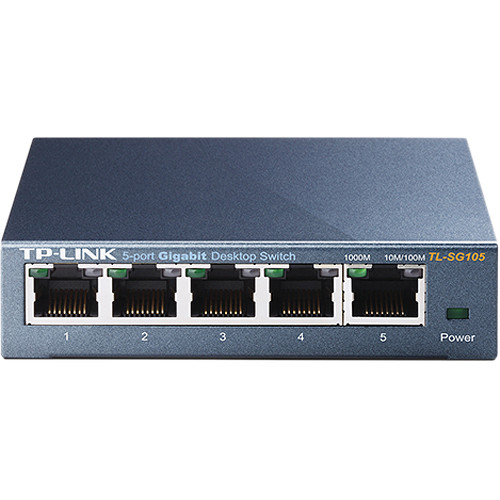

Expand your wired network with the TP-Link TL-SG105 5-Port 10/100/1000 Mb/s Desktop Switch. Featuring 5 Gigabit Ethernet ports, it supports major networking standards including IEEE 802.3ab, 802.3x, 802.3u, and 802.3i for seamless connectivity. The switch prioritizes latency-sensitive applications like voice, video, and gaming with 802.1p support and optimizes multicast traffic via IGMP snooping.
The TL-SG105 is designed with energy efficiency in mind, reducing power consumption based on the number of active ports and cable length. Its fanless, steel-housed design ensures quiet and reliable operation, suitable for desktop or wall mounting.
Additional information
| Weight | 0.85 lbs |
|---|---|
| Dimensions | 7.8 × 5.15 × 4.25 in |
| Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| DC Input Power | VDC at 0.6 A |
| Material of Construction | Steel |
| Cooling System | Passive |
| Certifications | CE, FCC, RoHS, as per Manufacturer |
| Storage Humidity | 5 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Draw | 2.43 W |
| Supported Protocols | Auto-MDIX/MDI<br>IGMP Snooping |
| Packet Buffer | 1 Mb |
| Switching Bandwidth | 10 Gb/s |
| Forwarding Rate | 7.4 Mpps |
| Supported IEEE Standards | 802.1p, 802.3ab, 802.3i, 802.3u, 802.3x |
| MAC Address Table Size | 2K |
| Jumbo Frames Support | 16, 000 Bytes |
| Transmission Method | Store-and-Forward |
| Indicator Lights | Link/Activity, Power |
