Description

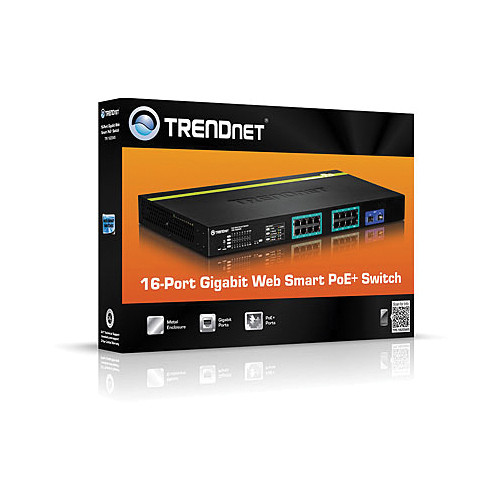

TRENDnet TPE-1620WS v1.0R: Advanced 16-Port Gigabit Web Smart PoE+ Switch
The TRENDnet TPE-1620WS v1.0R 16-Port Gigabit Web Smart PoE+ Switch is designed to deliver high-performance network management at an affordable price. With a robust 32Gb/s switching capacity, this switch is equipped with sixteen PoE+ Gigabit ports and two shared SFP slots, making it ideal for businesses and organizations looking to expand their network infrastructure.
Key Features:
- 16-Port Gigabit PoE+ Switch with 32Gb/s switching capacity
- Two shared SFP slots for fiber uplinks
- Advanced traffic management with 802.3ad link aggregation and 802.1Q VLAN
- Enhanced security with Voice VLAN and GVRP
- Quality of Service (QoS) queue scheduling for optimized network performance
- GREENnet technology for energy savings
- Real-time traffic comparison charts and error group charts for monitoring
- Cable diagnostic test for rapid troubleshooting
This IPv6 ready switch offers a range of features that make it an excellent choice for businesses looking to improve their network infrastructure. The advanced traffic management features, including 802.3ad link aggregation and 802.1Q VLAN, allow for flexible network configurations and improved network performance. The switch also features enhanced security measures, such as Voice VLAN and GVRP, to protect your network from unauthorized access.
The TRENDnet TPE-1620WS v1.0R is also designed with energy efficiency in mind, featuring GREENnet technology that helps reduce power consumption. The switch also includes real-time traffic comparison charts and error group charts, making it easy to monitor network performance and identify potential issues. The cable diagnostic test feature allows for rapid troubleshooting, reducing downtime and improving overall network reliability.
Additional information
| Weight | 10.15 lbs |
|---|---|
| Dimensions | 20.4 × 14 × 4 in |
| Ports | 14 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)<br />2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) |
| Forwarding Rate | 23.8 Mpps |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| PoE Power Budget | 185 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Draw | 198.00 W (Active) |
| OS Compatibility | Windows XP or Later |
| Packet Buffer | 8 Mb |
| Switching Bandwidth | 32 Gb/s |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z |
| Supported Protocols | Head-of-Line (HOL) Blocking<br>IGMP Snooping<br>Link Aggregation<br>Port Mirroring |
| RFC | RFC 1213<br />RFC 1493<br />RFC 2674<br />RFC 1907<br />RFC 1643<br />RFC 2863<br />RFC 2233<br />RFC 1215<br />RFC 1757<br />RFC 2819<br />RFC 2674<br />RFC 2618<br />RFC 2925<br />RFC 4560 |
| Security Features | DHCP Snooping<br>DoS Attack Prevention<br>RADIUS Authentication |
| VLAN IDs | 4094 |
| VLAN Groups | 256 |
| Multicast Groups | 256 |
| MAC Address Table Size | 16K |
| Jumbo Frames Support | 10, 000 Bytes |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Operating Humidity | 90% |
