Description
Reliable Storage for Demanding Surveillance Systems

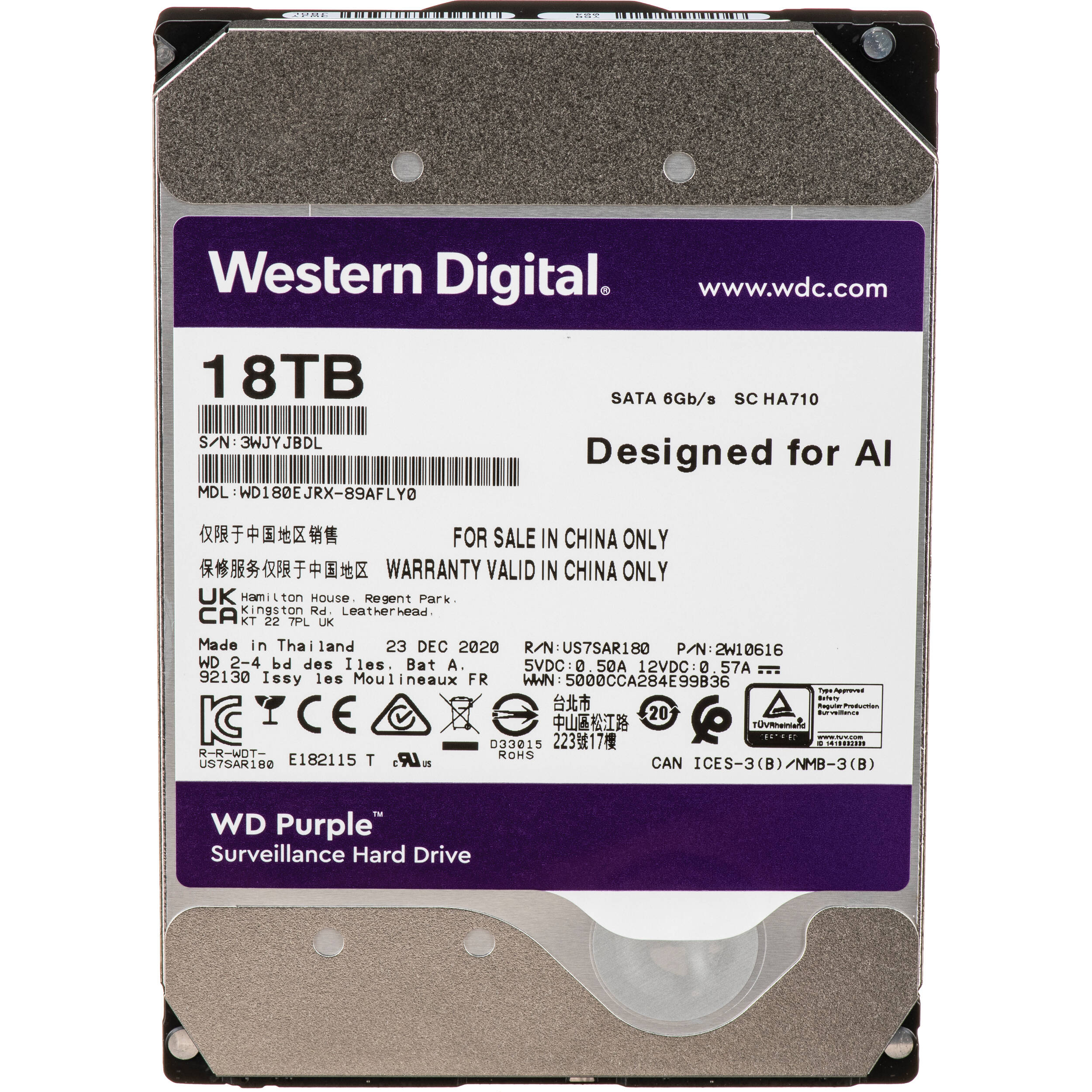

The WD 18TB Purple 7200 rpm SATA III 3.5″ Internal Surveillance Hard Drive is engineered to deliver high-capacity storage for 24/7 surveillance systems, supporting up to 64 high-definition cameras. With its advanced AllFrame AI technology, this hard drive minimizes video interruptions, errors, and pixelation, ensuring smooth video recording and playback.
Key Features:
- High Capacity: 18TB storage capacity for extensive video storage needs.
- Optimized Performance: Supports up to 64 HD cameras for comprehensive surveillance coverage.
- Advanced Technology: AllFrame AI technology reduces video errors and interruptions.
- Fast Data Transfer: SATA III 6 Gb/s interface with data transfer speeds up to 272 MB/s.
- Durability: 300,000 load/unload cycles and 1.5 million hours MTBF for reliable operation.
- High Workload Support: Annualized workload rating of 360TB per year.
This WD Purple hard drive is designed to provide a robust and reliable storage solution for your surveillance system, ensuring that your security footage is captured and stored without interruption. With its high capacity, fast data transfer speeds, and advanced technology, it’s an ideal choice for large-scale surveillance applications.
Upgrade your surveillance system with confidence using the WD 18TB Purple 7200 rpm SATA III 3.5″ Internal Surveillance Hard Drive, designed to meet the demands of high-definition surveillance with ease.
Additional information
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 7.5 × 5 × 2.6 in |
| Storage Capacity | 18 TB |
| Mean Time Between Failures (MTBF) | 1.5 Million Hours |
| Dimensions (W x H x D) | 4 x 1.03 x 5.79" / 101.6 x 26.16 x 147.07 mm |
| Certifications | RoHS, as per Manufacturer |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Temperature | 32 to 149°F / 0 to 65°C |
| Storage Shock | 250 G / 2.0 ms |
| Operating Shock | 50 G / 2.0 ms |
| Power Draw | 6.3 W (Active)<br />5.9 W (Idle)<br />0.9 W (Standby) |
| Non-Recoverable Read Errors per Bits Read | < 1 in 1015 |
| Load/Unload Cycles | 300, 000 |
| Cache Memory | 512 MB |
| Endurance (Total Bytes Written) | 360 TB |
| Spindle Speed (RPM) | 7200 RPM |
| Noise Level | 27.0 dB (Active)<br />20.0 dB (Idle) |
| Form Factor | 3.5" |
| Drive Type | HDD |
| Read Speed | Sequential: 272 MB/s |
| Write Speed | Sequential: 272 MB/s |
| Interface | SATA III (6 Gb/s) |
| Warranty Length | Limited 3-Year Warranty |
